Job # 1 in permanent corrosion protection is "KEEP IT DRY!" Simple in word but challenging in execution, because aggressive soil and water conditions and hard to access infrastructure can prevent straightforward solutions. Petrolatum Tape Systems are a robust 3-step application that works together to continuously prevent corrosion in aboveground, below ground as well as in underwater environments.

Uses & Applciations for our Petrolatum Tape Systems

  • Atmospheric Uses: piping, structural steel, flanges & valves,  sweating lines, tank bases, pipe crossing, cooling tower piping and under thermal insulation
  • Buried Uses: flanges & valves, pipe, weld joints, pipe couplings,  pipe penetrations, cadwelds, bolted fittings, ductile/cast iron pipe

Features

  • Applied to marginally prepared surfaces (SSPC SP 2-3)
  • Conforms to irregular shapes and profiles
  • Can be applied to cold, wet surfaces
  • Not effected by water acids, salts or soil organics
  • Encapsulation of lead paint
  • Contains no solvents
  • Easy application in any temperatures
  • Ready for immediate service after application
  • Meets AWWA C217 Standard
  • History of proven application and reliability for longterm prevention of corrosion

Products

Stac Tape System

Stac Prime
StacWrap
Stac Fill
Stac Guard

The Stac Advantage

Denso Tape System

Denso Paste
Densyl Tape
Denso Profilling Mastic
Denso Utility Tape

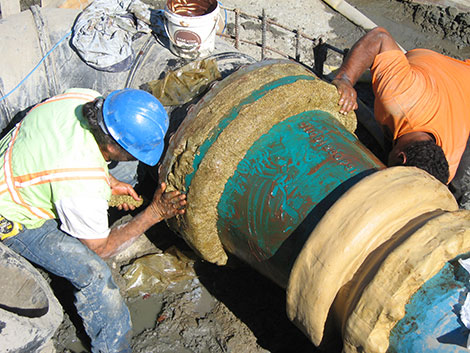

Step 1

Petrolatum tape primer is the first component of a  Petrolatum Tape System. Primer is used as a corrosion inhibiting undercoat prior to the application of petrolatum tapes. Applied by a gloved hand or stiff brush at normal ambient temperatures, Primers serve to penetrate existing rust, displace moisture, pacify the surface and aid in tape adhesion without drying, hardening or cracking.

Step 2

Petrolatum Tape Application- wrapping of a non-woven synthetic fabric tape that is fully impregnated with a neutral petrolatum compound blended with inert fillers and corrosion inhibitors. When combined with a compatible primer and protective tape outer wrap, Petrolatum Tape will remain highly resistant to mineral acids, alkalis and salts and will exhibit high dielectric strength.

Step 3

Apply All-Purpose Protective Tape used as an outer wrap for increased mechanical strength and electrical resistance when applied over petrolatum tape. Composed of a tough, conformable, plasticized PVC material that is highly impermeable to water, water vapor and air, this final wrap assures excellent long term resistance to alkalis, acids, oil and bacteria even in the most aggressive environments.

Profiling Mastic

is recommended when working with irregular shapes such as flanges, couplings, elbows, fittings or restraints. Profiling Mastic easily and permanently conforms to any shape, overlaying a smooth profile on irregular contours without voids or gaps which can then be easily and effectively wrapped with Petrolatum Tape.
